Assembling your Dyson light

• Stand the light on a flat surface.

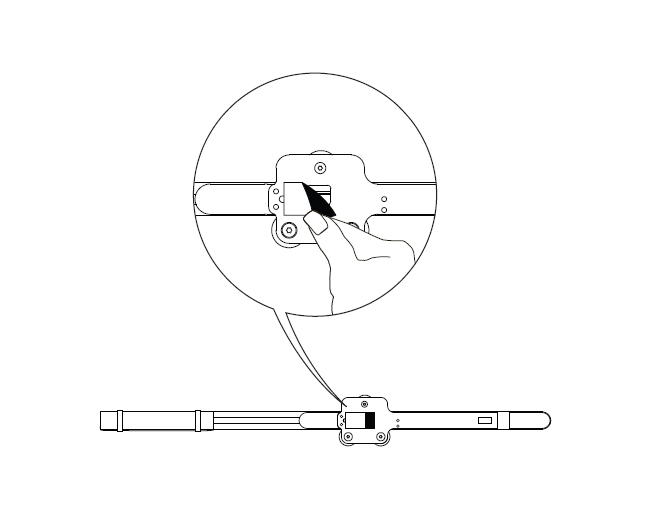

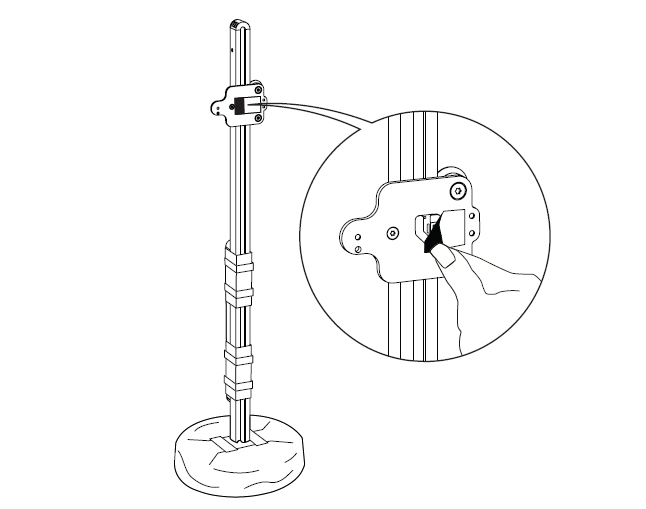

• Remove the red tape from the mounting plates to expose the electrical contacts.

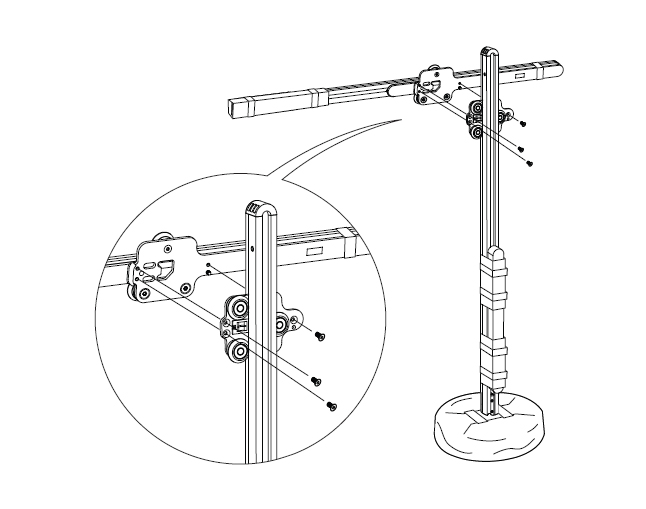

• Align the square shapes and screw holes on the heat sink arm and the upright.
• Press the two parts together with one hand.

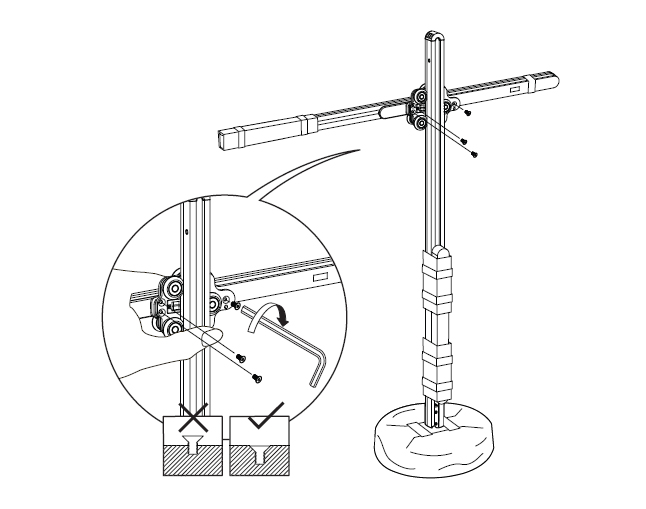

• Loosely screw in the three screws.
• Recheck alignment.
• Proceed to screw until securely clamped.

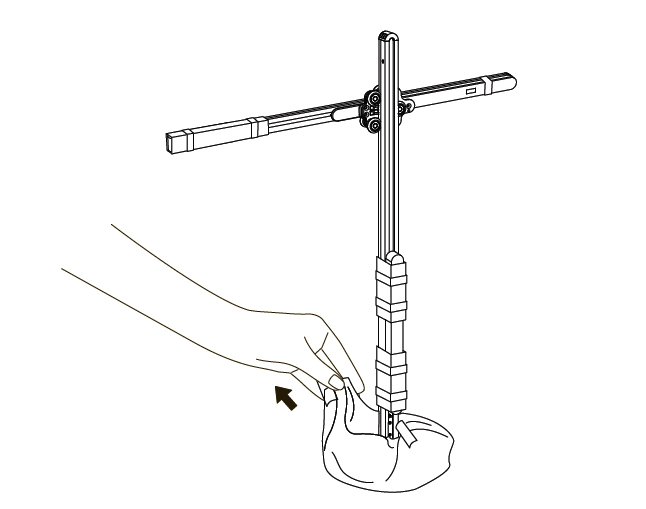

• Remove the packaging from the base.

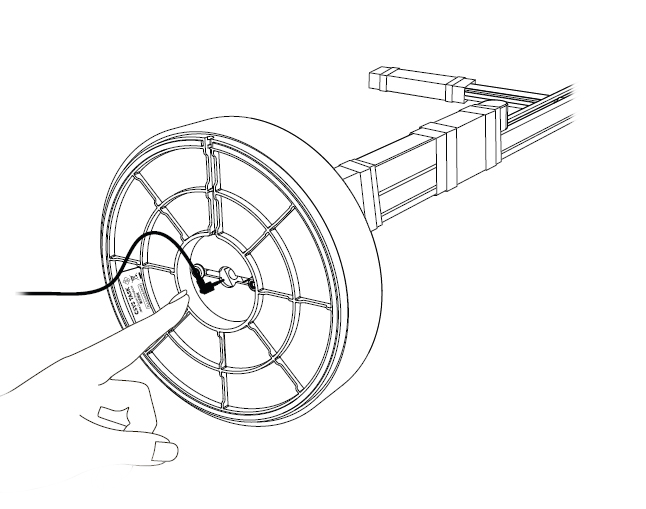

• Plug the power cord into the centre of the base.

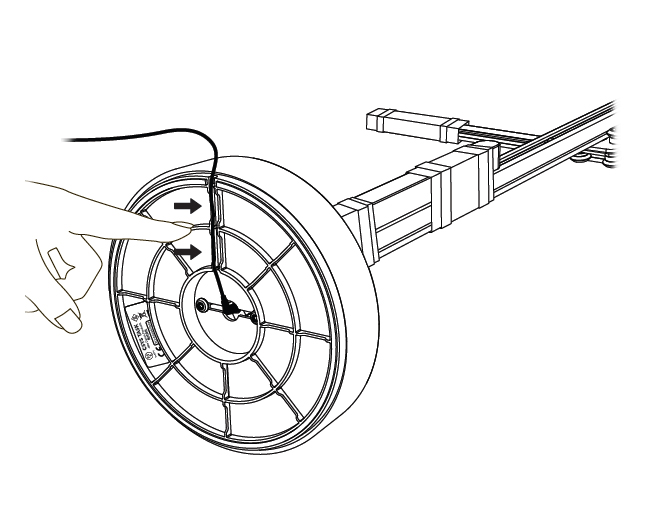

• Carefully lay the cord through indicated groove ensuring it does not become twisted.
• Place the light upright ensuring cord remains in the slot.

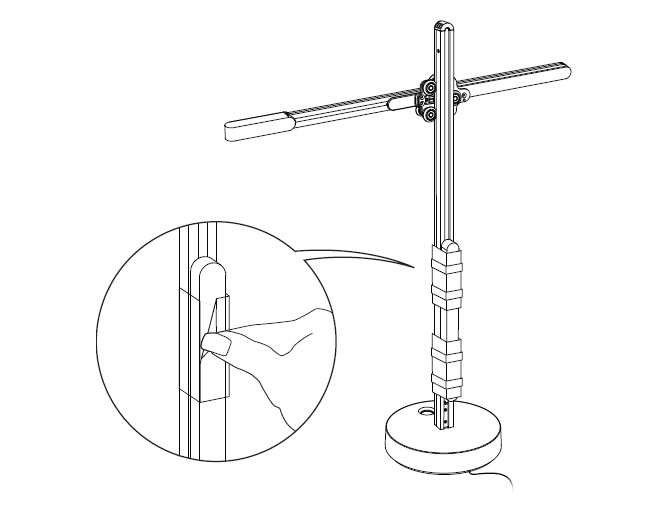

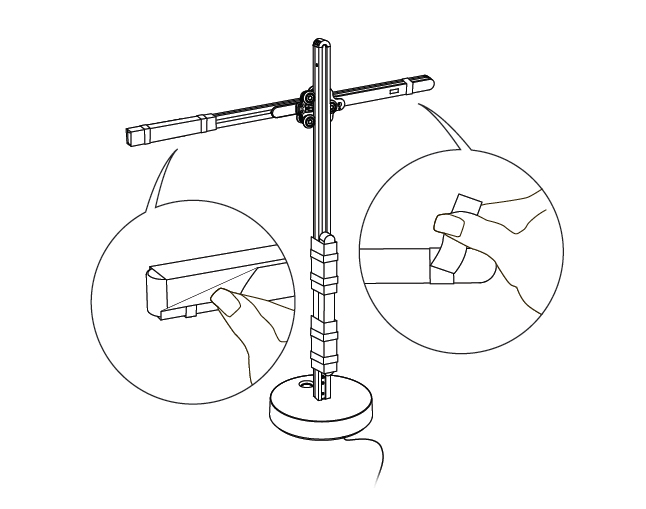

• Remove red tape on detachable arm and remove transparent tape on upright and weight.
