How to remove blockages from the duct
Turn power off and unplug the machine.

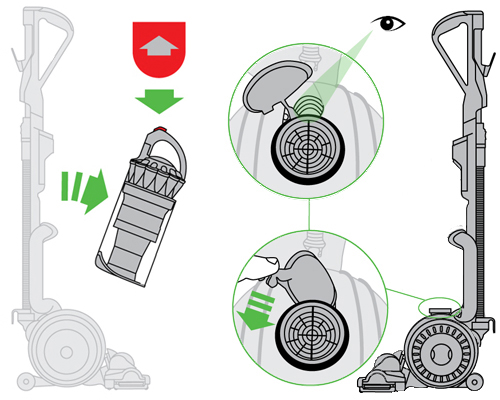

Step One - Check in the inspection port.
- Remove the clear bin from your machine by pressing the cyclone release catch as shown.
- Lift up the clear inspection port cover and check for blockages in the channel and remove if necessary.

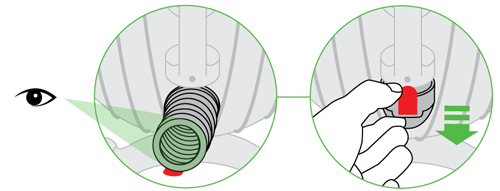

Step two - Check the internal hose.
- Lay the machine on its front.

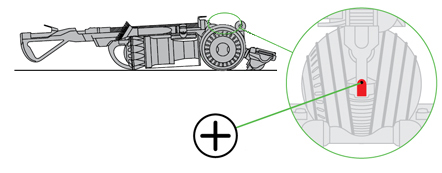

- Undo the fastening screw using a cross head screw driver.
- Unclip the red internal hose collar.
- Check the internal hose for blockages and any damage.
Note: Refit the internal hose collar and screw before continuing with further checks.
