Quick start guide

Charge the machine.

• Plug the charger into the battery or place the machine in the dock as shown below.

• Plug the charger into a wall socket.
• The battery should be fully charged after 5.5 hours

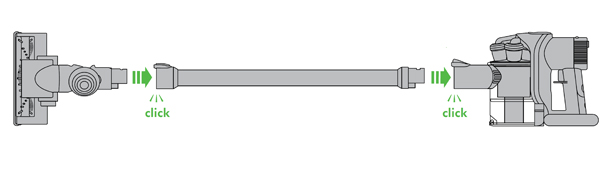

Assemble the machine.

• Attach the wand to the main body of the machine.
• Attach the motorised floor tool to the end of the wand.

Using the machine.

• Your Dyson handheld is designed to give constant suction. Unlike other handhelds, when fully charged the DC44 will give between 8 to 20 minutes of powerful constant suction depending on the power mode and tool selected.

Using the accessories

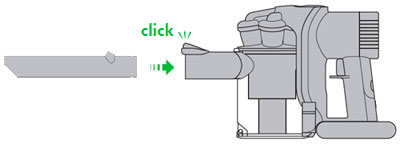

• Slide the crevice tool into the inlet pipe on the bin assembly until it "clicks" into position.

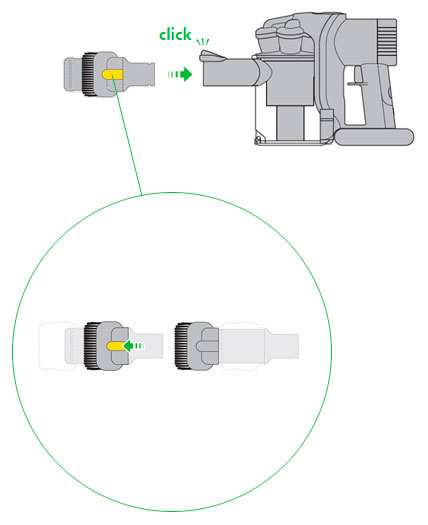

Combination tool

• The brush must be positioned at the back of the combination tool to use the crevice function.
• To use the brush function press the button on the brush section.
• Slide the brush section towards the front of the combination tool.

Emptying the bin.

• To ensure your machine continues to clean effectively, the clear bin must be emptied as soon as the dust reaches the max mark.

• Push the button on the main body of the machine downwards to release dust directly into a dustbin.
• Shake or tap firmly to remove all dust from inside the fine dust collector.

• Press firmly underneath the catch to close the clear bin base.
