Quick start guide

What's in the box?

• DC47 Vacuum cleaner.
• Extension tube.
• Wand handle.
• Dual mode floor tool.
• Hose assembly.
• Accessory tools.
• User guide.

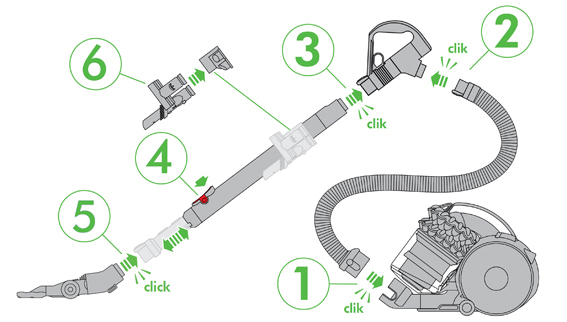

Assembling your machine

1. Attach the hose to the hose inlet on the front of the machine.
2. Clip the hose to the rear of the wand handle.
3. Clip the wand handle to the extension tube.
4. Press the release catch on the extension tube to extend, ensuring it 'clicks' into place.
5. Attach the dual mode tool to the extension tube.
6. Insert the tools into the holster and attach to the extension tube as shown below.

How to start vacuuming

• Always extend the power cord fully to the red tape before use.

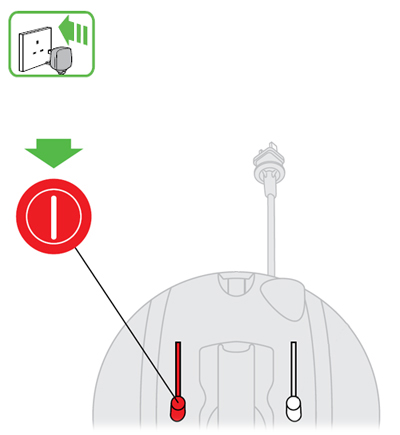

• To switch 'ON' or 'OFF' press the power button located as shown.

• The brush bar will always default to the 'ON' position each time you switch the appliance on.

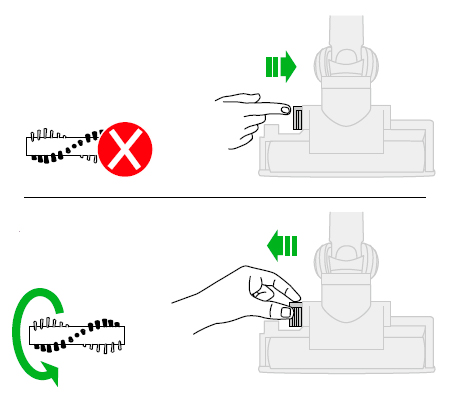

• To vacuum hard floors press the button at the side of the turbine head in, to turn the brushbar off.
• To vacuum carpeted floors, pull the button out or turn the machine off and restart.

Using the accessory tools

Attach the accessory tools to either the extension tube, wand handle or the hose as shown below, ensuring they click into place.

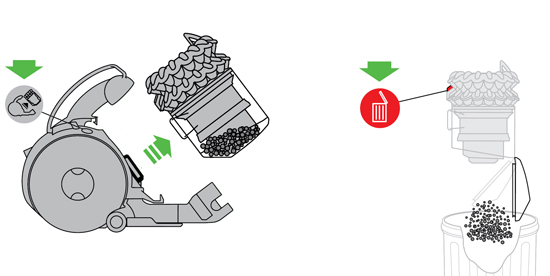

Emptying the clear bin

• Empty as soon as the dirt reaches the level of the MAX mark – do not overfill.
• To remove the cyclone and clear bin, push the release button to the side of the carrying handle, as shown. The carrying handle will be released. Remove the cyclone and clear bin unit.
• To release the dirt, press the red bin release button.
• To minimize dust/allergen contact when emptying, encase the clear bin tightly in a plastic bag and empty.
