Quick start guide - step by step
The machine can be charged on the dock or by plugging the charger directly to the machine as shown below.
The light on the charger will show when the machine is being charged and will go out when fully charged.
Option 1
 |
 |
 |
 |
| Charging. |
Fully charged. |
Indicates a fault - contact Dyson helpline. |
Not charging - contact Dyson helpline. |
Option 2
| Attaching to docking station. |
Removing from docking station. |
 |
 |
- Plug the charger into a wall socket.
- The battery should be fully charged after 5 hours
|
|
|
|
| Charging. |
Fully charged. |
Not charging - too cold/too hot. |
Not charging - contact Dyson helpline. |

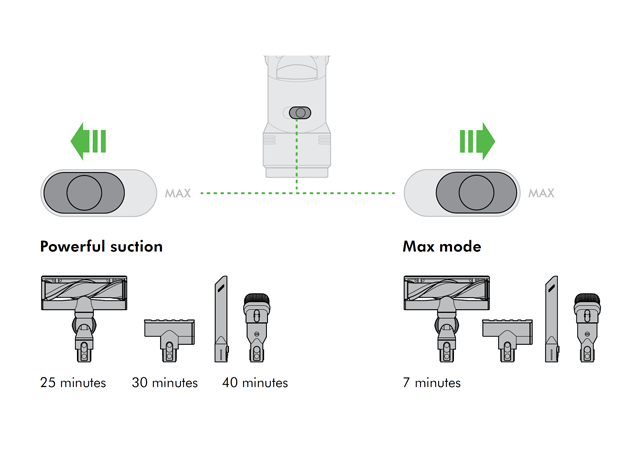

How long will my machine run for?
Your Dyson handheld is designed to give constant suction. When fully charged your Dyson handheld will give between 7 to 40 minutes of powerful constant suction depending on the power mode and tool selected.
To change the mode, hold the trigger down and press the max button.

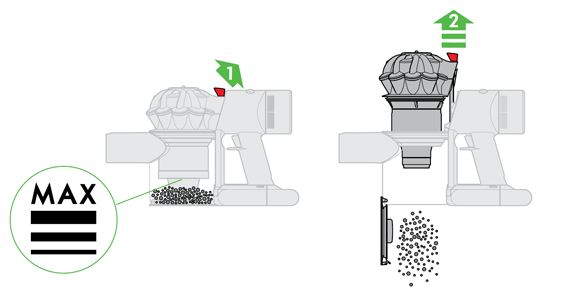

How to empty the clear bin
- Empty as soon as the dirt reaches the level of the MAX mark – do not overfill.
- Ensure the appliance is disconnected from the charger before emptying the clear bin. Be careful not to pull the 'ON ' trigger.
- To release the dirt, hold the appliance by the handle, pull the red lever back and lift upwards to release the cyclone. Continue until the bin base automatically opens and releases the dirt.

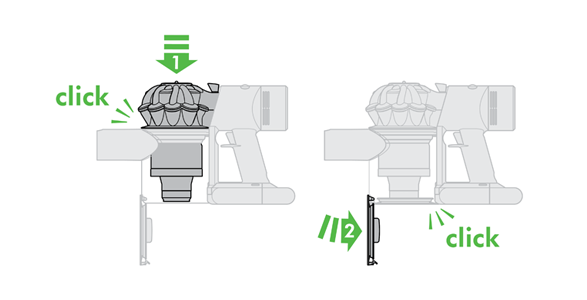

- To close, push the cyclone downwards until it is in the normal position and manually close the base of the bin - the base will click when it is securely in place.
- Close the clear bin base so it clicks into place and is secure.
